Bridge Formula Calculator

Offline axle weight compliance for commercial trucks

Client
Commercial Trucking Client
Industry
Logistics
Platform
Mobile
Timeframe
3 months
Compliance results for each bridge

About project

An offline Flutter app that lets drivers and carriers check axle weights against the US Federal Bridge Gross Weight Formula before the weigh station.

The app calculates legal axle weights and bridge limits for commercial vehicles on US interstate highways, implementing the Federal Bridge Gross Weight formula (23 CFR 658.17).

Every calculation runs on the device, so drivers get an answer at a loading dock or a remote scale with no signal.

Challenges & Solutions

Challenges

An overloaded inner axle group can fail inspection even when the gross weight is legal, and drivers need answers in places without coverage.

Solutions

A compliance engine tests every consecutive axle combination on the vehicle, including tractor, inner and outer bridges, for configurations of up to 9 axles.

BLoC keeps calculation models separate from widgets, Formz validates every input and numeric keyboard controls speed up entering many fields on a phone.

Main functionality

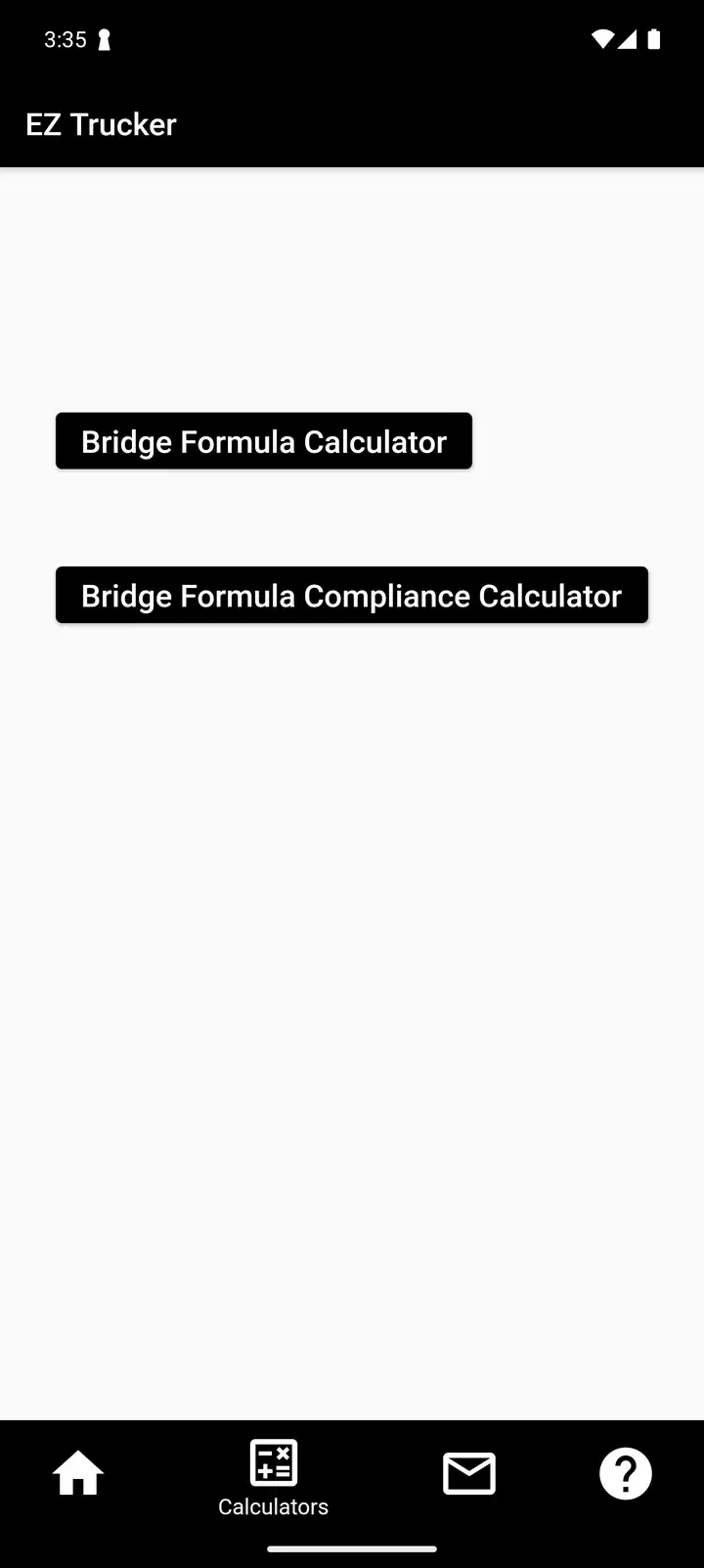

Federal Bridge Formula Calculator for Commercial Trucks

Bridge formula calculator
Maximum weight for any group of 2 to 9 axles.
Full compliance check
Every consecutive axle combination tested.

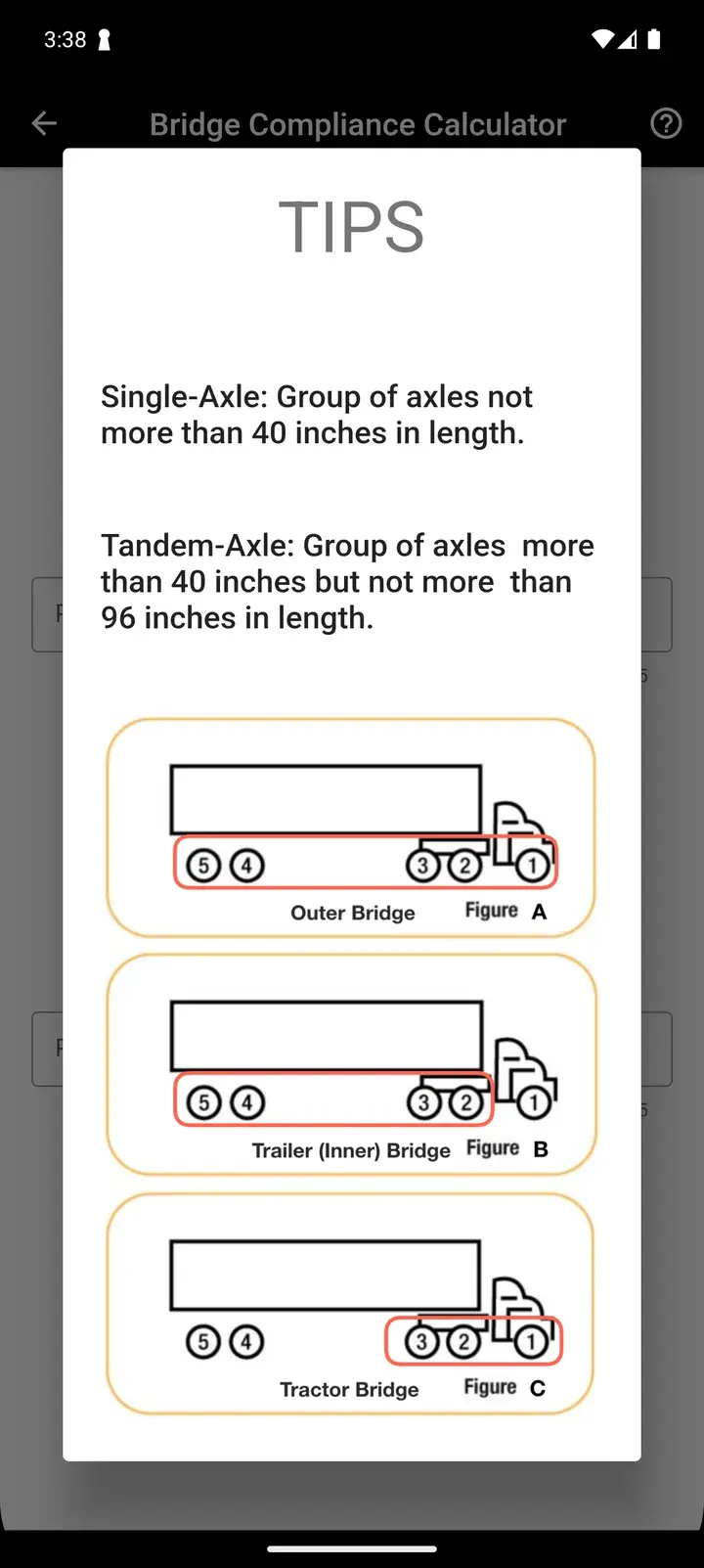

Axle classification
Single and tandem axle limits applied automatically.

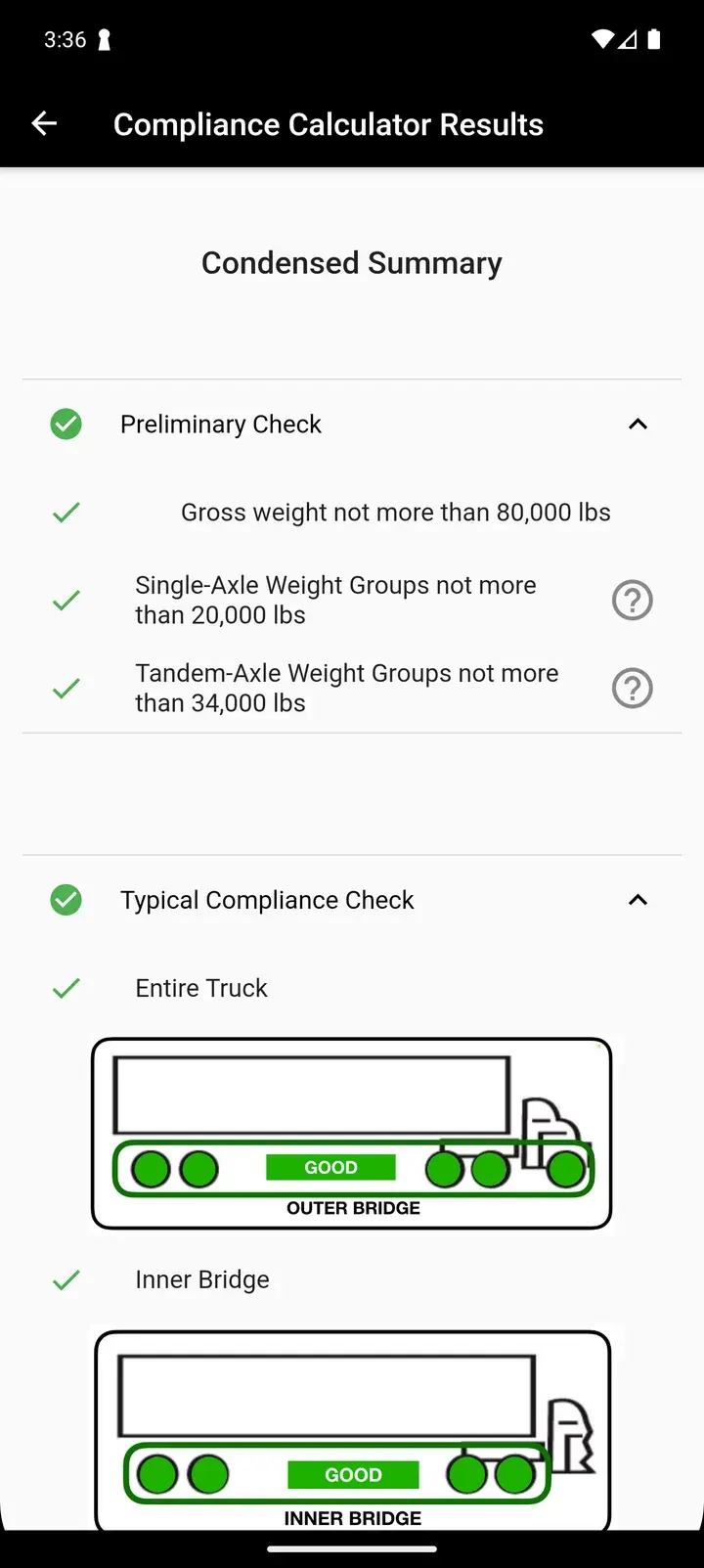

Two result views
A roadside checklist and a detailed table.
Reference guides
Measuring rules and exceptions in the app.

Results

9
axles supported
100%
offline
  • Drivers check weight distribution before the weigh station
  • Inner group violations caught under 80,000 lb gross
  • Works the same with or without coverage

Technical implementation

  • All math in client side Dart with no backend
  • BLoC state management with recalculation on every change

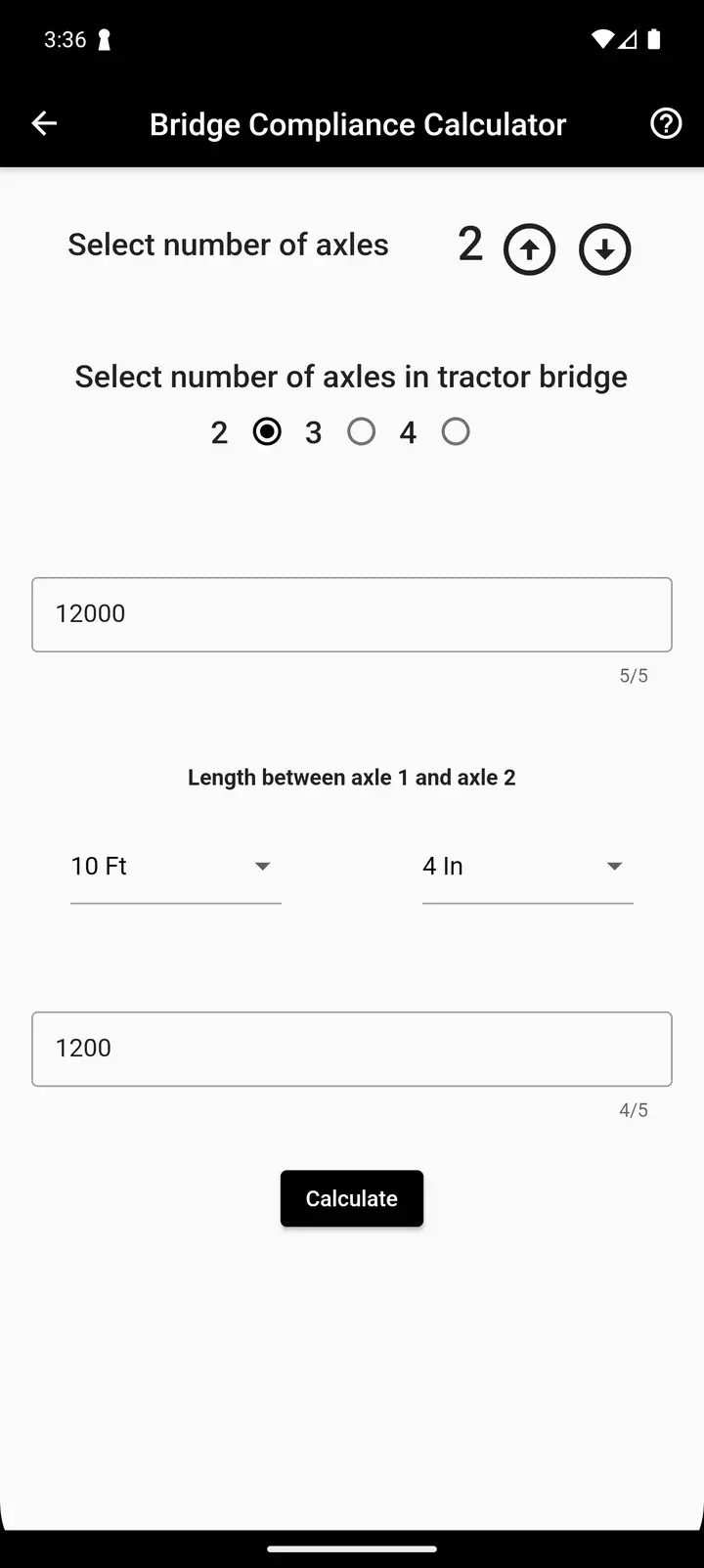

  • Form validation for feet, inches and weights before any calculation
